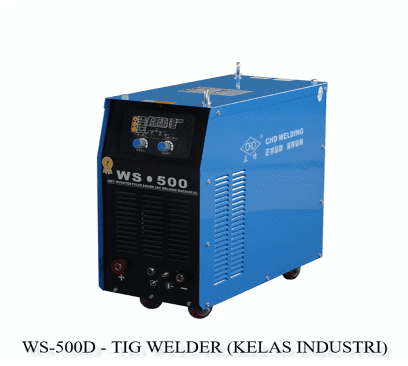

TIG WELDING MACHINE
n
| MODEL | WS-500D |
| RATED INPUT VOLTAGE/FREQUENCY | 3-380V±10% 50/60Hz |
| RATED INPT POWER (KVA) | 20 |
| RATED INPUT CURRENT (A) | 38 |
| RATED DUTY CYCLE (%) | 60 |
| OPEN LOAD VOLTAGE (V) | 23 ± 3V |
| WELDING CURRENT (A) | 5-500 |
| FLOW START CURRENT (A) | 10-160 |
| STOP ARC CURRENT (A) | 5-160 |
| UP SLOPE TIME (S) | 0.1-10 |
| DOWN SLOPE TIME (S) | 0.1-15 |
| PRE GAS TIME (S) | 0.1-15 |
| POST GAS TIME (S) | 0.1-15 |
| WELDING CURRENT (A) | 5-500 |
| THRUST CURRENT (A) | 1-250 |
| ARC STRIKE CURRENT (A) | 20-160 |
| INSULATION GRADE | F |
| POWER SOURCE N.W (Kg) | 49 |
| POWER SUPPLAY DIMENSIONS WXDXH (mm) | 340 X 720 X 700 |
| ARC STRIKING MODE | ARC STRIKING BY FREQUENCY |
| TYPE OF COOLING | AIR COOL / WATER COOL |
| OUTER SHELL PROTECTION DEGREE | IP21 |
| APLLY TUNGSTEN ELECTRODE DIAMETER | 06-Feb |
PRODUCT ADVANTAGES
n
| ■ Mesin las listrik kelas industri, cocok untuk penggunaan dalam waktu lama dan |
| tugas berat |
| Microcomputer control technology, digital display meter |
| ■ Arus naik dan turun yang lambat, pasokan udara awal, waktu penghentian udara |
| yang tertunda, dan |
| other parameters can be pre-set accurately |
| ■ TIG dapat memilih tinggi Metode frekuensi, goresan dan pengapian busur, dengan |
| pengelasan pendek, pengelasan panjang, pengelasan titik dan metode kontrol |
| other welding |
| ■ Model ws-500D dirancang dan dikembangkan untuk industri pipa baja tahan |
| karat juga memiliki fungsi pembuatan gas busur karbon |
| With special machine interface |
| APPLICATION INDUSTRY: |
| petrochemical, Pressure vessel, electrical construction, ship, bicycle, nuclear power, pipeline installation, etc. |
